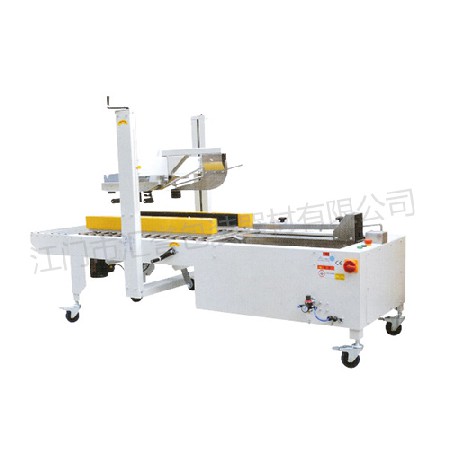

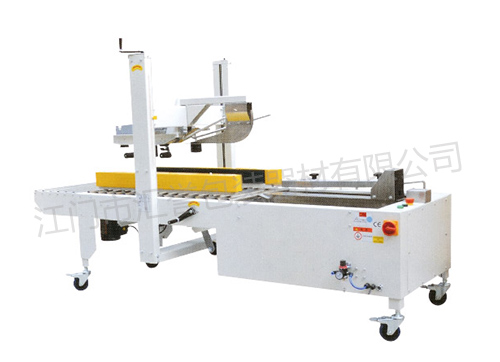

Hy-40cs semi automatic folding cover folding bottom sealing machine
2020-10-12 699
Product features:
※It adopts international advanced technology and adopts imported parts and electrical components.
※Adjust the width and height manually according to the carton size.
※It has the advantages of small volume, convenient operation and strong applicability.
※Automatic bottom folding, manual packing, automatic cover folding and upper and lower sealing.
| Main technical parameters | |
| Machine model | HY-40CS |
| Packing speed | 0-20m/min |
| Maximum package size | L500*W500*H500mm |
| Minimum package size | L150*W150*H150mm |
| Power supply | 1f,220V/110V,50/60HZ |
| Power consumption | 200W |
| Air source | 6KG |
| Applicable tape | W48mm,60mm,75mm |
| Machine size | L2080*W840*H1500mm |
| Machine weight | 265KG |
Manual folding→Manual push in→Upper and lower tape→Taping completed
-
