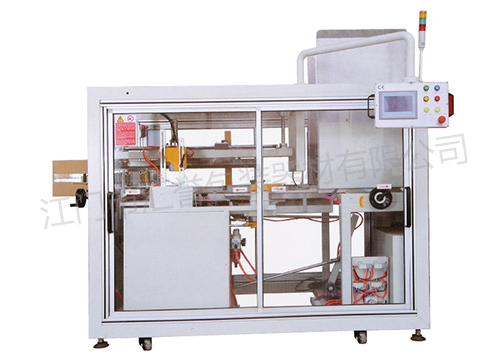

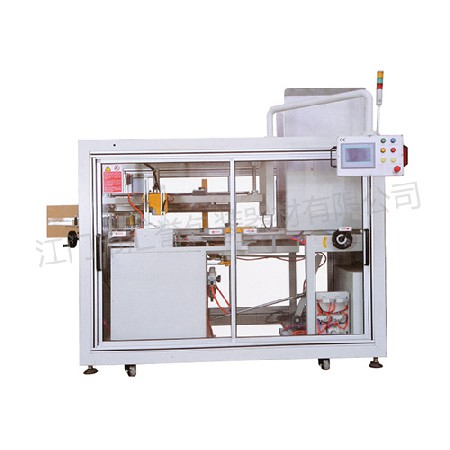

Hy-40h30 high speed unpacking machine
2020-10-12 726
Product features:
*Imported and absorbed advanced technology from Japan and Germany, and selected imported parts, electrical components and pneumatic components;
*The whole machine adopts cam continuous system, which makes the mechanical operation accurate, stable and durable;
*The frequency converter and the box can be adjusted to save time;
*Easy to operate, easy to adjust, no damage to bad paper box;
*The paper box is stored horizontally, which can replenish the empty paper box at any time without stopping the machine;
*Automatic warning to replenish cartons
*Equipped with transparent glass protective cover, the door automatically stops to avoid operation accidents;
*It can be operated on a single machine and can be used with automatic packaging line.
| Main technical parameters | ||
| Machine model | HY-40H30 | HY-40H50 |
| Unpacking capacity | 30 cases/minute | 50 cases/minute |
| Temporary storage of cartons | 80pcs(800mm) | 80pcs(800mm) |
| Temporary storage of cartons | L240-510*W190-400*H120-400mm | L250-450*W150-400*H100-300mm |
| Using electricity | 380V3 Phi746KW | 380V3 Phi746KW |
| Necessary air pressure | 5kg/cm3 | 6kg/cm3 |
| Air consumption | 300NL/min | 450NL/min |
| Machine size | L2372*W1210*H1820mm | L3120*W1250*H1740mm |
| Mechanical weight | 1000kg | 1200kg |
| Tape size | 2'、2.5' | 2'、2.5' |
-
