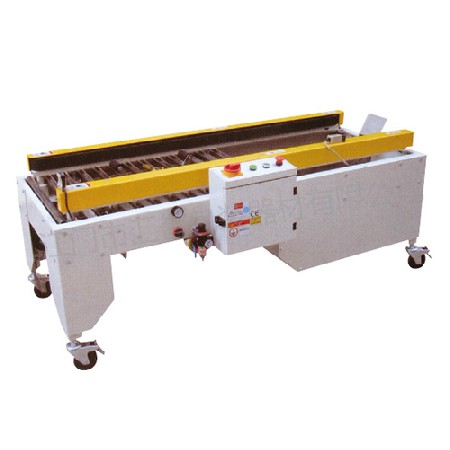

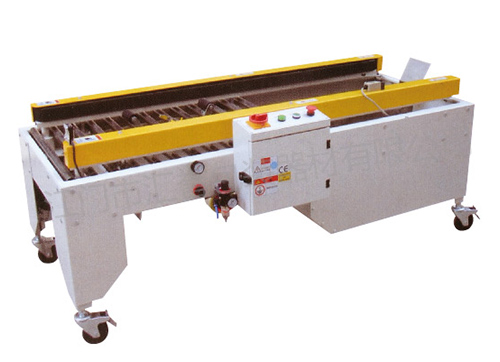

Hy-40a automatic folding and sealing machine
2020-10-12 706
Product features:
※It adopts international advanced technology and adopts imported parts and electrical components.
※According to the size of paper box, automatic clamping, suitable for multiple specifications at the same time.
※Automatic bottom folding, back cover with the same amount, convenient, fast and strong applicability.
※It can be operated on a single machine or with automatic packaging line.
| Main technical parameters | |
| Machine model | HY-40A |
| Packing speed | 8box/minute |
| Maximum package size | L500*W400*H600mm |
| Minimum package size | L200*W150*H100mm |
| Power supply | 220/380V50HZ |
| Power consumption | 200W |
| air source | 6KG |
| Applicable tape | W48mm,60mm,75mm |
| Machine size | L1780*W850*H800mm |
| Machine weight | 250KG |
-
